P class

Nos: 1480 - 1737 (258 cars)
Introduced: 1920s
Withdrawn: 1958 - 1960
Electrics: 4 x GE 247 (40hp) motors, PC-5 controller
Size: length 13.85 m
Seating: 80

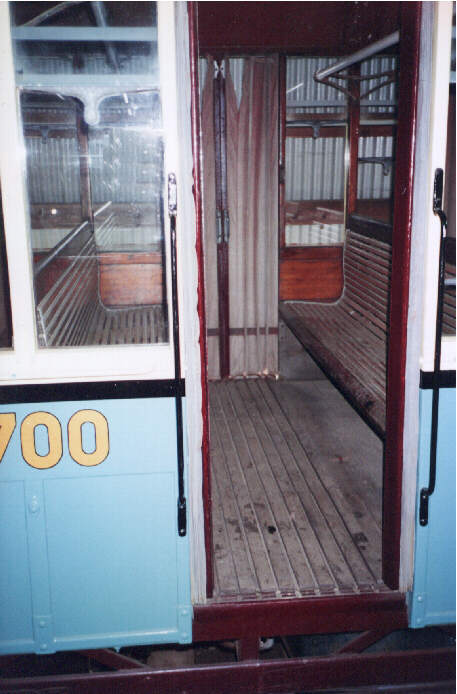

Built as a supplement to the O-class, these trams had enclosed compartments with concertina-type folding doors. They were given a nicer styling than earlier trams, and were fitted with more modern control equipment and automatic couplers.

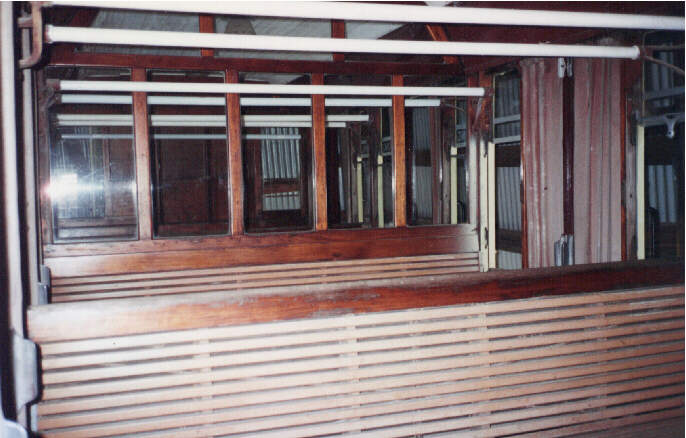

Inside, the tram is divided into two or three separate smoking and non-smoking compartments with glass screens, as shown here. The seating is plainly wooden and hard.

Preserved P-class trams

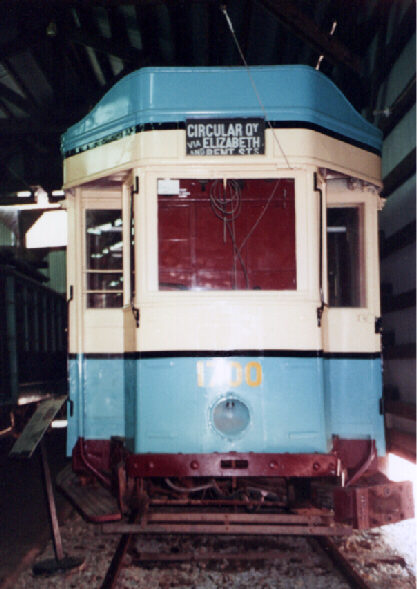

• No. 1497, at the Sydney Tramway Museum
• No. 1729, at The Old Canberra Tram Company. [21]
• No. 1700, at the Seashore Trolley Museum, USA. [2]

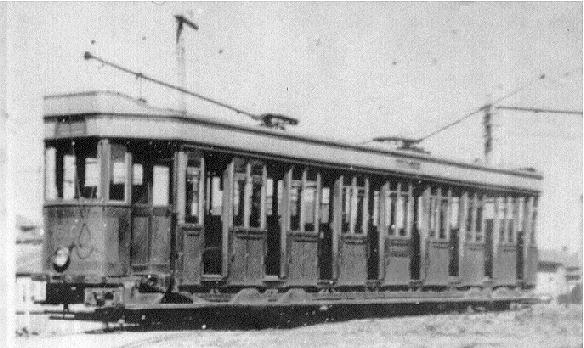

These P-class trams were rebuilt to resemble the R1-class tram. The conversion was not popular with passengers, and the trams saw little service.

Preserved P/R1-class trams

• No. 1573, at the Sydney Tramway Museum
